Model
|
ZBE 750-BK200
Standard
|
ZBE 750-BK200
Tropical
|
|
750kg / 24h nominal capacity*
|
at 20°C air and 15°C water
|
at 35°C air and 25°C water
|
| Storage capacity |
200kg (0.61m3) + 80kg ice cart |
|

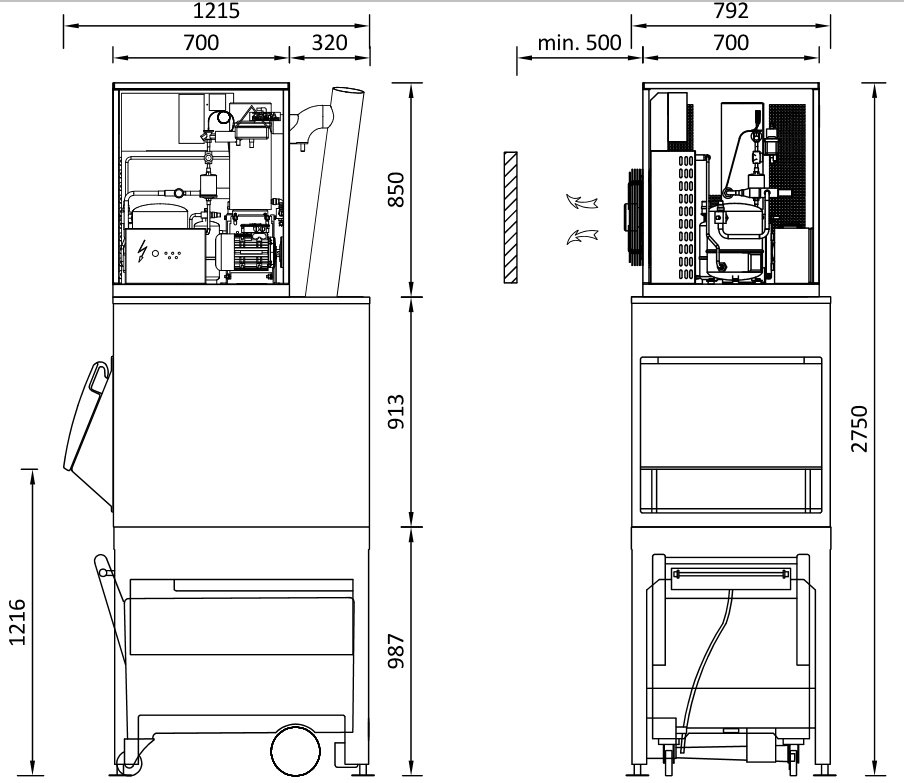

Dimensions (W x D x H)
|
864 x 1237 x 2727mm
|
|
Weight
|
327kg
|
332kg
|
|
Cabinet
|
stainless steel 1.430
|
|
Ice discharge
|
K type
|
|
Electricity
Power consumption
current consumption
Provided by customer
electric supply
fuse, slow-blow
cable cross section, Cu
|
2.7kW
6.2A
3/N/PE ~ 400V 50Hz
25A
2.5mm2
|
3.1kW
7.2A
3/N/PE ~ 400V 50Hz
25A
2.5mm2
|
|
Water
supply / drain
Provided by customer
pressure
quality
pH-value
hardness
temperature
|
3/4” BSP / 14mm O/D hose
2-5 bar
drinking water
7.2 – 9.5 pH
6 – 14 °dH 100 – 250 mg CaCO3/l
5°C - 30°C
|
|
Ambient temperature
|
5°C to 42°C
|
5°C to 45°C
|
|
Condenser
airflow
heat emission
|
air cooled
2,500 m3 / h
5.5 kW
|
air cooled
2,900 m3 / h
6.4 kW
|
|
Refrigerant R452a
ODP
GWP
CO2 tonnes equivalent
F-Gas leak check interval
|
1.8kg
0
2140
3.852
Not required
|
2.2kg
0
2140
4.708
Not required |
|
Compressor
refrigeration capacity
evaporation temperature
condensation temperature
|
Fully hermetic
3.8kW
-20°C
33°C
|
Fully hermetic
4.3kW
-20°C
45°C
|
|
Noise level
|
60dBA (3m)
|
|
Shipping dimensions: W x D x H
|
(0.87 x 0.73 x 1.0m) + (1.32 x 0.91 x 2.05m)
|
|
Shipping weights
|
(155kg) + (187kg)
|
(200kg) + (187kg) |
|
*according to site conditions. Air temperature, water temperature, water chemistry, air contamination and installation parameters can all effect ice output.
All product, product specifications and data are subject to change without notice
|

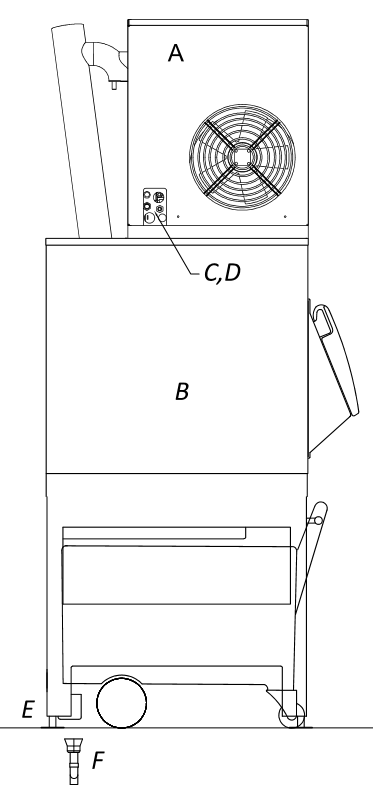

A: Ice machine
B: Ice storage
C: Water connection: 3/4" BSP
D: Electrical connection
E: Meltwater drain 14mm
F: Floor drain (by customer)
The ZBE 750-BK200 ice machine will be delivered according to CE standards and ready for connection to water power and drain.
Includes as standard:
- Condensation control
- Phase sequence relay
- Overload cut-out / thermal switch for all motors and compressor
- High pressure pressostat
- Water level monitoring
- K type ice discharge
- Level control by light scanner when bin is full
- Flexible hose water for water supply 2m
- Water drain hose 2m
- 1 x PE ice scoop
- 1 x Ziegra triple external 3 stage water filtration unit
- 1 x BR 80 insulated ice cart
- 1 x ice paddle
Configuration Options
|
| |
|
|
Drain Pump
Pumps the drain water into the site drain if it is too high or far away for gravity drainage. Supplied with a 2 metre flex, it can be directly wired into a fused spur or a plug fitted (not supplied) and plugged into a standard 3 pin socket. Mount on the floor underneath the machine. Not suitable for dusty environments.
|
 |
| |
|
|
Condenser options
Water cooled instead of air-cooled: where air-cooling is not possible.Useful in applications where the machine must be installed into an area with poor ventilation where a remote aircooled condenser is not possible.
Remote condenser option: The condenser supplied separately to the machine for remote mounting, typically outside, when the machine is to be located in areas that poorly ventilated or have airbourne contamination such as flour dust. Available as standard for indoor mounting, weatherproof for outside mounting and cu/cu saltwater resistant for mounting in areas close to the sea.
Low noise condenser: Only for remote installation. Use when the condenser will be going in an area sensitive to noise, such as residential.
|
|
| |
|
|
Frostguard: The machine equipped to deal with intermittent temperatures below 5°C, only available in conjunction with remote condenser option above.
|
|
| |
|
|
CoolNat Ice maker only
For connection to a central CO2 refrigeration system
|
 |
| |
|
Additional Hygiene Options
|
| |
|
|
Hygiene +: Auto water drain
The water tank automatically drains when the machine is switched off, preventing water stagnation during periods of infrequent use.
|
|
| |
|
|
Hygiene +: Automatic flushing inc. drain
Auto flushing of system with water, includes auto water drain. Details on request.
|
|
| |
|
|
Hygiene +: UV sterilization
sterilization of the incoming water supply by mean of UV filter, all incoming water is passed through a powerful UV field on its way into the machine which kill almost all biohazards in the water supply. Slows down proliferation of water-borne bacteria inside the machine during operation.
|
.jpg)
|
| |
|
|
Sanitiser solution: 5litre tub part # ZUK9700044
Ziegra ice machine sanitiser is an anti-bacterial product designed for both regular preventative use and intensive cleaning operations.
|
|
| |
|
|
Spare filter cartridges: Set of replacement cartridges for the Ziegra triple kit that comes as standard with this machine, The fine and coarse cartridges require change every 6 months, the anti-scale when it runs low. Order part ZUK9700031KIT.
Set consists of :
1 x ZUK9700033 - Coarse filter
1 x ZUK9700032 - Anti-scale filter
1 x ZUK9700031 - Fine filter.
|
|
| |
|
Ancillary Items
|
| |
|
|
Additional BR 80 insulated ice cart
80kg capacity insulated ice cart, moulded from food safe polymer for maximum hygiene. With removeable lid. Gives one bin to fill while another is being used.
|
 |
| |
|
|
7 day timer
Allows programming of the machine to make ice at specific times of the day or night.
|
 |
