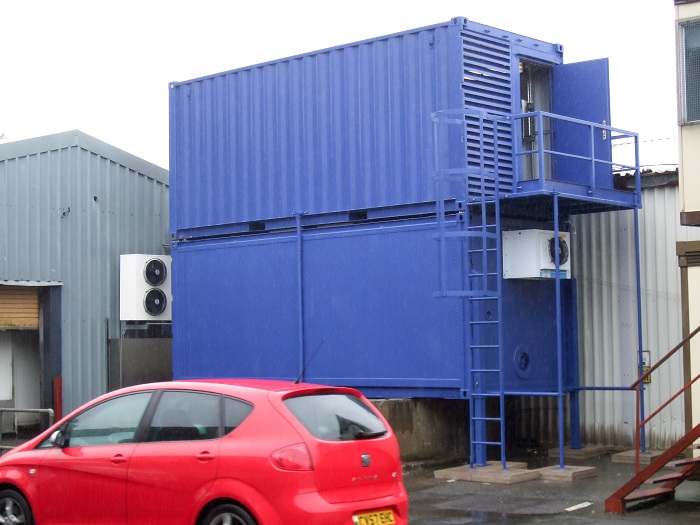

Ziegra Ice Machines offer a wide range of solutions for fishing ports and harbours ranging from small stand alone machines with a range of stainless steel ice storage bins options, normally used by small cooperatives. We also offer containerised solutions often favoured where space is an issue.
In the case of large ports we have a number of solutions available, including ice silos, ice rake systems and bespoke delivery systems.
You can see some examples right
Model: ZBE750-SG500
The Ziegra ZBE 750-SG500 makes up to 750kg per 24 hours of flake ice in one of three sizes and is a complete packaged ice machine including, ice maker, refrigeration and condenser in one unit. The machine is mounted on a 500kg capacity insulated ice storage bin.

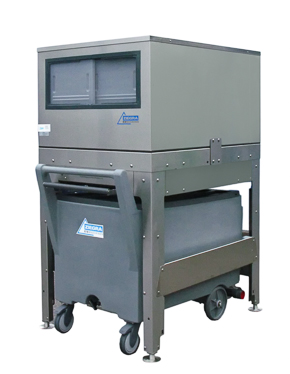

Model: ZBE750-BK400
The Ziegra ZBE 750-BK400 makes up to 750kg of ice and is a complete packaged ice machine including, ice maker, refrigeration and condenser in one unit. Ice is discharged into a 400kg capacity elevated bin ready for use and features two 80kg capacity ice carts docked below the bin. The carts are filled by gravity by pulling a lever just above the cart, thus eliminating shovelling of ice from the bin
Model: ZBE1.200-SG500
The Ziegra ZBE 1.200-SG500 makes up to 1,200kg per 24 hours of flake ice into a 500kg capacity insulated ice storage bin.
Model: ZBE1.200-BK630 WB
The Ziegra ZBE 1.200-BK630 WB makes up to 1,200kg of ice and is a complete packaged ice machine including, ice maker, refrigeration and condenser in one unit. Ice is discharged into a 630kg capacity elevated bin ready for use . Existing carts up to 666mm wide can be docked under the bin and filled by gravity by pulling a lever just above the cart.
Model: UBE1.750
The Ziegra UBE 1.750 makes up to 1,750kg per 24 hours of flake ice in one of three sizes.
Model: ZBE2.500
The Ziegra ZBE 2.500 makes up to 2,500kg per 24 hours of flake ice in one of three sizes
Model: UBE3.500-2
The Ziegra UBE 3.500-2 makes up to 3,500kg per 24 hours of flake ice in one of three sizes.
Model: ZBE 5.000 RV
The Ziegra ZBE 5.000 RV makes up to 5,000kg per 24 hours of flake ice in one of three sizes.
Model: UBE5.000-2
The Ziegra UBE 5.000-2 makes up to 5,000kg per 24 hours of flake ice in one of three sizes.
Model: ZBE7.500 RV
The Ziegra ZBE 7.500 RV makes up to 7,500kg per 24 hours of flake ice in one of three sizes.
Model: UBE7.500
The Ziegra UBE 7.500 makes up to 7,500kg per 24 hours of flake ice in one of three sizes.
Model: UBE10.000-2
The Ziegra UBE10.000-2 makes up to 10,000kg per 24 hours of flake ice in one of three sizes.
Model: ZSM2.500
The Ziegra ZSM 2.500 makes up to 2,500kg per 24 hours of scale ice
Model: ZSM3.000
The Ziegra ZSM 3.000 makes up to 3,000kg per 24 hours of scale ice
Model: ZSM6.000
The Ziegra ZSM 6.000 makes up to 6,000kg per 24 hours of scale ice
Model: ZSM8.000
The Ziegra ZSM 8.000 makes up to 8,000kg per 24 hours of scale ice
Model: ZSM10.000
The Ziegra ZSM 10.000 makes up to 10,000kg per 24 hours of scale ice
Model: ZSM15.000
The Ziegra ZSM 15.000 makes up to 15,000kg per 24 hours of scale ice
Model: ZSM50.000 E
The ZSM 50.000 E makes up to 50,000kg per 24 hours depending on refrigeration capacity attached

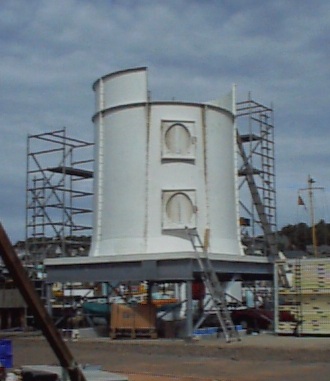

Model: ZS12 Ice Silo
12,000kg automatic ice silo for modular assembly
