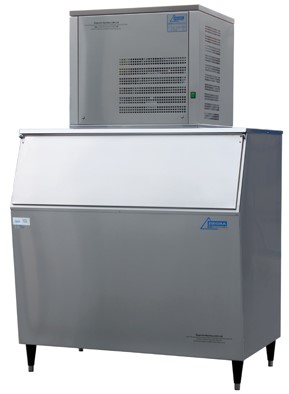

300kg Nugget Ice Machine with 280kg Slope Fronted Storage

The Ziegra ZNE 300-S280 ice machine makes up to 300kg of nugget ice and sits on an S280 slope fronted ice storage bin, which stores 280kg of ice ready for use. The ice machine has a discharge tube and built in level control, which drops ice into the bin below, stops ice production when the bin is full and automatically restarts once ice is removed.

ZNE 300 main features

  • Ice level control system included as standard
  • Nugget ice made at optimum temperature of -0.5°C.
  • Two sizes of ice flake available.
  • Hygienic design with a sealed water system
  • External water filtration system supplied as standard.
  • Designed for continuous operation 24/7
  • Stainless steel construction
  • No moving parts in refrigeration circuit lowers risk of gas leaks

S280 ice storage features

  • Stainless steel construction
  • Poly lined interior for easy cleaning and maximum chlorine resistance.
  • Non CFC insulation



Model

ZNE 300-S280 standard

ZNE 300-S280  Tropical

300kg / 24h nominal capacity*

at 20°C air and 15°C water

at 35°C air and 25°C water

Ice storage capacity 280kg (0.85m³)

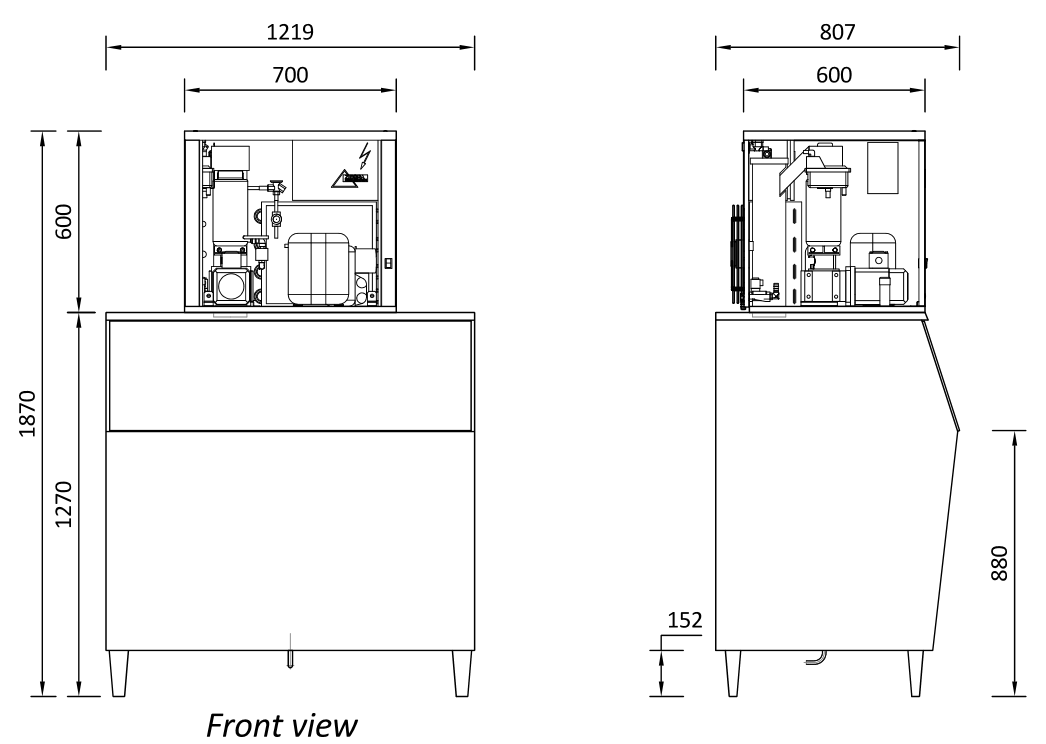

Dimensions (W x D x H)

1220 x 807 x 1875mm

Weight

185kg

Cabinet

stainless steel 1.4301

Electricity
Power consumption
current consumption
Provided by customer
electric supply
fuse, slow-blow
cable cross section, Cu


1.1kW
4.9 / 2.8A

1/N/PE ~ 230V 50Hz
13A
1.5mm2


1.7kW
7.5 / 3.8A

1/N/PE ~ 230V 50Hz
13A
1.5mm2

Water
supply / drain

Provided by customer
pressure
quality
pH-value
hardness

temperature


3/4” BSP / 14mm O/D hose


2-5 bar
drinking water
7.2 – 9.5 pH
6 – 14 °dH / 100 – 250 mg CaCO3/l

5°C - 30°C

Ambient temperature

5°C to 42°C

5°C to 45°C

Condenser
airflow
heat emission

air cooled
1,400 m3 / h
1.6 kW

air cooled
1,400 m3 / h
2.6 kW

Refrigerant R452a

1.2kg

1.2kg

Compressor
refrigeration capacity
evaporation temperature
condensation temperature

Fully hermetic
1.25kW
-18°C
33°C

Fully hermetic
1.35kW
-18°C
45°C

Noise level

55dBA (3m)

Shipping dimensions: W x D x H

(0.76 x 0.66 x 0.79m) + (0.9 x 0.84 x 1.04m)

Shipping weights

(95kg) + (75kg)

*according to site conditions. Air temperature, water temperature, water chemistry, air contamination and installation parameters can all effect ice output.

All product, product specifications and data are subject to change without notice

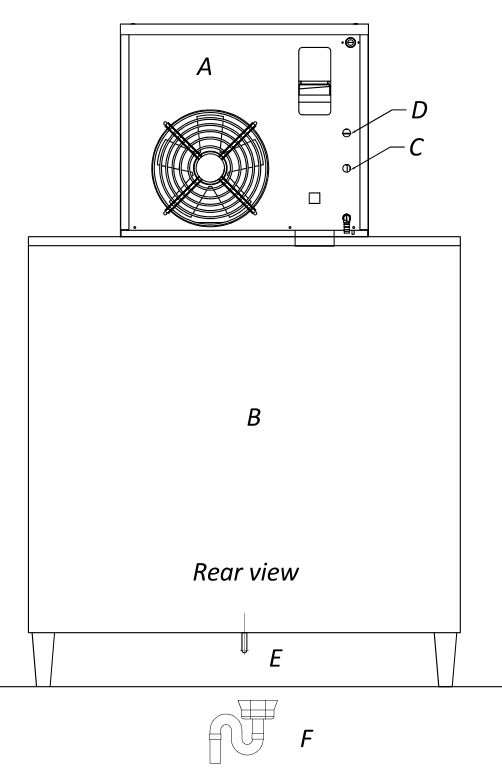

D: Electrical cable / plug: Standard UK 3 pin
E: Water connection: ¾ BSP
F: Overflow: 14mm
Filter: Ziegra Single supplied as standard

The ZNE 300-S280 ice machine will be delivered according to CE standards and ready for connection to water power and drain.

Includes as standard:

  • High pressure pressostat
  • Water supply control
  • Motor protection for the compressor
  • 1 x Ice discharge tube
  • Ice level control by reflection sensor
  • 1 x connecting cable 3.5m
  • 1 x Flexible 2 metre water supply hose
  • 1 x flexible 2 metre drain hose
  • 1 x PE ice scoop
  • 1 x Ziegra Single water filtration kit

Configuration Options



Castor mounting

The bin mounted on castors so the machine can be moved for cleaning. Supplied pre-fitted.



Drain Pump

Pumps the drain water into the site drain if it is too high or far away for gravity drainage. Supplied with a 2 metre flex, it can be directly wired into a fused spur or a plug fitted (not supplied) and plugged into a standard 3 pin socket. Mount on the floor underneath the machine. Not suitable for dusty environments.



Condenser options

Water cooled instead of air-cooled:  where air-cooling is not possible.Useful in applications where the machine must be installed into an area with poor ventilation where a remote aircooled condenser is not possible.

Remote condenser option: The condenser supplied separately to the machine for remote mounting, typically outside, when the machine is to be located in areas that poorly ventilated or have airbourne contamination such as flour dust. Available as standard for indoor mounting, weatherproof for outside mounting and cu/cu saltwater resistant for mounting in areas close to the sea.

Low noise condenser: Only for remote installation. Use when the condenser will be going in an area sensitive to noise, such as residential.



Frostguard:

The machine equipped to deal with intermittent temperatures below 5°C, only available in conjunction with remote condenser option above.



Additional Hygiene Options



Hygiene +: Auto water drain

The water tank automatically drains when the machine is switched off, preventing water stagnation during periods of infrequent use.



Hygiene +: Automatic flushing

Auto flushing of system with water, includes auto water drain. Details on request.



Hygiene +: UV sterilization

Sterilization of the incoming water supply by mean of UV filter, all incoming water is passed through a powerful UV field on its way into the machine which kill almost all biohazards in the water supply. Slows down proliferation of water-borne bacteria inside the machine during operation.



Sanitiser solution: 5litre tub part # ZUK9700044

Ziegra ice machine sanitiser is an anti-bacterial product designed for both regular preventative use and intensive cleaning operations.



Spare filter cartridge: #ZUK9700040

Standard replacement cartridge for the Ziegra single kit, requires change every 6 months.



Ancillary items



7 day timer

Allows programming of the machine to make ice at specific times of the day or night.



Smartcart 240

80kg capacity insulated ice cart, moulded from food safe polymer for maximum hygiene. With removeable lid. Ideal when the ice machine and bin must be located away from the point where the ice will be used.



GRP plantroom

A standalone GRP plantroom to protect the ice machine from the elements and thieves when the machine must be mounted outdoors. Arrives fully assembled, needs only a suitable base to bolt it down to. Only available with remote condener option above.
