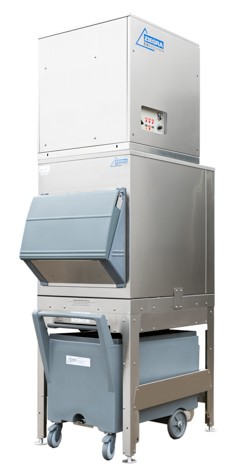

500kg Nugget Ice Machine with 200kg Elevated Bin and Cart

The Ziegra ZNE 500-BK200 ice machine makes up to 500kg of nugget ice per 24 hours into a 200kg elevated ice storage bin. The bin is fully insulated to reduce melting loss and the ice drops into a cart docked below by pulling a handle, thus eliminating manual shovelling of ice from the bin.

ZNE 500 main features

  • Ice level control system included as standard
  • Nugget ice made at optimum temperature of -0.5°C.
  • Hygienic design with a sealed water system
  • External water filtration system supplied as standard.
  • Designed for continuous operation 24/7
  • Stainless steel construction
  • No moving parts in refrigeration circuit lowers risk of gas leaks

BK200 main features

  • Oldest ice used first for increased hygiene
  • Gravity unloading of bin, reduces manual handling of ice
  • 80kg ice cart makes transporting ice easy
  • Durable polyethylene lift door with no sharp edges
  • Non CFC insulation and poly lined for easy cleaning
  • Cart drainage docking system integrated in to the bin support frame
  • Stainless steel construction

Model

ZNE 500-BK200

500kg / 24h nominal capacity*

at 20°C air and 15°C water

Ice storage capacity 200kg (0.61m³) + 80kg ice cart

Dimensions (W x D x H)

864 x 1237 x 2727 mm

weight

327kg

cabinet

Stainless steel 1.4301

Electricity
power consumption
current consumption
Provided by customer
electric supply
fuse, slow-blow
cable cross section, Cu


2.0kW
4.7A

3/N/PE ~ 400V 50Hz
20A
2.5mm2

Water
supply / drain
provided by customer
pressure
quality
pH value
hardness

temperature


¾” BSP / 14mm

2 – 5 bar
drinking water quality
7.2 – 9.5 pH
6 – 14 °dH
100 – 250mg CaCO3/l
5°C - 30°C

Ambient air temperature

5°C - 42°C

Condenser
air flow
heat emission

Air cooled
2500 m3/h
4.3kW

refrigerant R452a 1.8kg

Compressor
refrigeration capacity
evaporation temperature
condensation temperature

Fully hermetic
2.3kW
-20°C
35°C

Noise level

60dBA (3m)

Shipping dimensions (W x D x H)

(0.87 x 0.73 x 1.0m) + (1.32 x 0.91x 2.056m)

Shipping weight

(155kg) + (187kg)

*according to site conditions. Air temperature, water temperature, water chemistry, air contamination and installation parameters can all effect ice output.

All product, product specifications and data are subject to change without notice

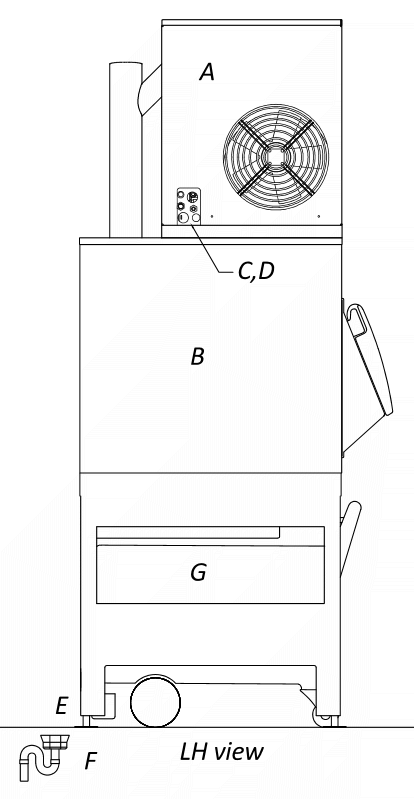

D: Electrical cable / plug: Standard UK 3 pin
E: Water connection: ¾ BSP
F: Overflow: 14mm
Filter: Ziegra Single supplied as standard

The ZNE 500-BK200 ice machine will be delivered according to CE standards and ready for connection to water power and drain.

Includes as standard:

  • High pressure pressostat
  • Water supply control
  • Motor protection for the compressor
  • 1 x ice discharge tube
  • Ice level control by reflection sensor
  • 1 x connecting cable 3.5m
  • 1 x Flexible 2 metre water supply hose
  • 1 x flexible 2 metre drain hose
  • 1 x PE ice scoop
  • 1 x Ziegra Single water filtration kit
  • 1 x Smartcart 240
  • 1 x ice paddle
  • Ziegra triple water filtration system

Configuration Options



Drain Pump

Pumps the drain water into the site drain if it is too high or far away for gravity drainage. Supplied with a 2 metre flex, it can be directly wired into a fused spur or a plug fitted (not supplied) and plugged into a standard 3 pin socket. Mount on the floor underneath the machine. Not suitable for dusty environments.



Condenser options

Water cooled instead of air-cooled:  where air-cooling is not possible.Useful in applications where the machine must be installed into an area with poor ventilation where a remote aircooled condenser is not possible.

Remote condenser option: The condenser supplied separately to the machine for remote mounting, typically outside, when the machine is to be located in areas that poorly ventilated or have airbourne contamination such as flour dust. Available as standard for indoor mounting, weatherproof for outside mounting and cu/cu saltwater resistant for mounting in areas close to the sea.

Low noise condenser: Only for remote installation. Use when the condenser will be going in an area sensitive to noise, such as residential.



Frostguard: The machine equipped to deal with intermittent temperatures below 5°C, only available in conjunction with remote condenser option above.



Additional Hygiene Options



Hygiene +: Auto water drain

The water tank automatically drains when the machine is switched off, preventing water stagnation during periods of infrequent use.



Hygiene +: Automatic flushing inc. drain

Auto flushing of system with water, includes auto water drain. Details on request.



Hygiene +: UV sterilization

sterilization of the incoming water supply by mean of UV filter, all incoming water is passed through a powerful UV field on its way into the machine which kill almost all biohazards in the water supply. Slows down proliferation of water-borne bacteria inside the machine during operation.



Sanitiser solution: 5litre tub part # ZUK9700044
Ziegra ice machine sanitiser is an anti-bacterial product designed for both regular preventative use and intensive cleaning operations.



Spare filter cartridges: Set of replacement cartridges for the Ziegra triple kit that comes as standard with this machine, The fine and coarse cartridges require change every 6 months, the anti-scale when it runs low. Order part ZUK9700031KIT.

Set consists of :

1 x ZUK9700033 - Coarse filter

1 x ZUK9700032 - Anti-scale filter

1 x ZUK9700031 - Fine filter.



Ancillary Items



Additional Smartcart 240

With removable lid. Gives one bin to fill while another is being used.



7 day timer

Allows programming of the machine to make ice at specific times of the day or night.


GRP plantroom: A standalone GRP plantroom to protect the ice machine from the elements and thieves when the machine must be mounted outdoors. Arrives fully assembled, needs only a suitable base to bolt it down to. Only available with remote condener option above.
