1,000kg Nugget Ice Machine with 630kg Elevated Ice Bin

The Ziegra ZNE 1.000-BK630 WB ice machine makes up to 1,000kg of nugget ice per 24 hours into a 630kg elevated ice storage bin. The bin is fully insulated to reduce melting loss and is designed to allow a  customer to plug their own carts up to 666mm wide below the bin. By simply pulling a handle, the ice falls into the carts, thus eliminating manual shovelling of ice from the bin. Will accept the popular eurocarts often found in bakeries and meat processing factories.

ZNE 1.000 main features

  • Ice level control system included as standard
  • Nugget ice made at optimum temperature of -0.5°C.
  • Hygienic design with a sealed water system
  • External water filtration system supplied as standard.
  • Designed for continuous operation 24/7
  • Stainless steel construction
  • No moving parts in refrigeration circuit lowers risk of gas leaks

BK630 WB main features

  • Oldest ice used first for increased hygiene
  • Gravity unloading of bin, reduces manual handling of ice
  • Durable polyethylene lift door with no sharp edges
  • Non CFC insulation and poly lined for easy cleaning
  • Stainless steel construction

Model

ZNE 1.000-BK630 WB Standard

ZNE 1.000-BK630 WB  tropical

1,000kg / 24h nominal capacity*

at 20°C air and 15°C water

at 35°C air and 25°C water

Ice storage capacity 630kg (2.0m³) + customer carts

Dimensions (W x D x H)

1525 x 1257 x 3462mm

Weight

615kg

Cabinet

stainless steel 1.4301

Electricity
Power consumption
current consumption
Provided by customer
electric supply
fuse, slow-blow
cable cross section, Cu


3.3kW
7.5A

3/N/PE ~ 400V 50Hz
25A
2.5mm2


4.3kW
8.5A

3/N/PE ~ 400V 50Hz
25A
2.5mm2

Water
supply / drain
Provided by customer
pressure
quality
pH-value
hardness
temperature


3/4” BSP / 14mm O/D hose

2-5 bar
drinking water
7.2 – 9.5 pH
6 – 14 °dH, 100 – 250 mg CaCO3/l
5°C - 30°C

Ambient temperature

5°C to 42°C

5°C to 45°C

Condenser
airflow
heat emission

air cooled
2,900 m3 / h
7.5 kW

air cooled
3,000 m3 / h
10.3 kW

Refrigerant R452a

2.2kg

2.8kg

Compressor

refrigeration capacity
evaporation temperature
condensation temperature

Fully hermetic

5.0kW
-22°C
33°C

Fully hermetic

5.6kW
-21°C
45°C

Noise level

60dBA (3m)

Shipping dimensions:

W x D x H



(0.89 x 0.82 x 1.19m) + (1.64 x 1.32 x 1.22m) + (1.64 x 1.32 x 1.22m)

Shipping weights

(205kg) + (240kg) + (180kg)

*according to site conditions. Air temperature, water temperature, water chemistry, air contamination and installation parameters can all effect ice output.

All product, product specifications and data are subject to change without notice

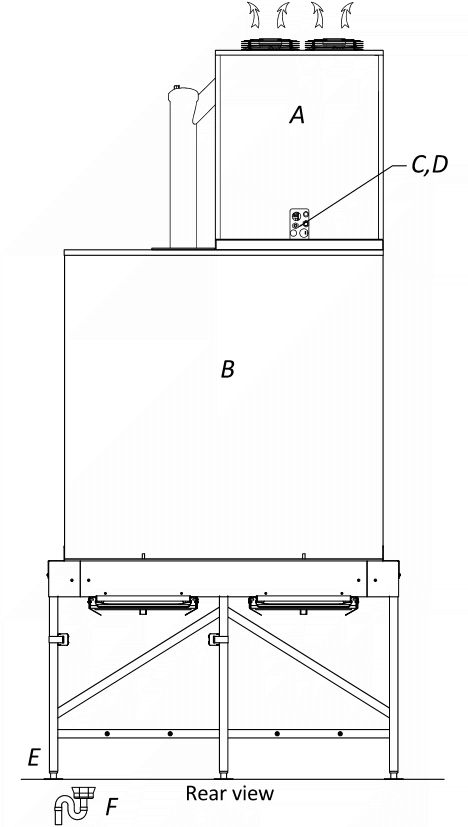

D: Electrical cable / plug: Standard UK 3 pin
E: Water connection: ¾ BSP
F: Overflow: 14mm
Filter: Ziegra Triple supplied as standard (not shown)

The ZNE 1.000-BK630 WB ice machine will be delivered according to CE standards and ready for connection to water power and drain.

Includes as standard:

  • Condensation control
  • Phase sequence relay
  • Motor protection for the compressor
  • Overload cut-out / thermal switch for all motors and compressor
  • High pressure pressostat
  • Water level monitoring
  • Ice discharge tube
  • Level control by reflection light scanner
  • Connecting cable 5m
  • Flexible hose water for water supply 2m
  • Water drain hose 2m
  • PE ice scoop
  • Ziegra triple external 3 stage water filtration unit

Configuration Options



Drain Pump

Pumps the drain water into the site drain if it is too high or far away for gravity drainage. Supplied with a 2 metre flex, it can be directly wired into a fused spur or a plug fitted (not supplied) and plugged into a standard 3 pin socket. Mount on the floor underneath the machine. Not suitable for dusty environments.



Condenser options

Water cooled instead of air-cooled:  where air-cooling is not possible.Useful in applications where the machine must be installed into an area with poor ventilation where a remote aircooled condenser is not possible.

Remote condenser option: The condenser supplied separately to the machine for remote mounting, typically outside, when the machine is to be located in areas that poorly ventilated or have airbourne contamination such as flour dust. Available as standard for indoor mounting, weatherproof for outside mounting and cu/cu saltwater resistant for mounting in areas close to the sea.

Low noise condenser: Only for remote installation. Use when the condenser will be going in an area sensitive to noise, such as residential.



Frostguard: The machine equipped to deal with intermittent temperatures below 5°C, only available in conjunction with remote condenser option above.



Additional Hygiene Options



Hygiene +: Auto water drain

The water tank automatically drains when the machine is switched off, preventing water stagnation during periods of infrequent use.



Hygiene +: Automatic flushing inc. drain

Auto flushing of system with water, includes auto water drain. Details on request.



Hygiene +: UV sterilization

sterilization of the incoming water supply by mean of UV filter, all incoming water is passed through a powerful UV field on its way into the machine which kill almost all biohazards in the water supply. Slows down proliferation of water-borne bacteria inside the machine during operation.



Sanitiser solution: 5litre tub part # ZUK9700044
Ziegra ice machine sanitiser is an anti-bacterial product designed for both regular preventative use and intensive cleaning operations.



Spare filter cartridges: Set of replacement cartridges for the Ziegra triple kit that comes as standard with this machine, The fine and coarse cartridges require change every 6 months, the anti-scale when it runs low. Order part ZUK9700031KIT.

Set consists of :

1 x ZUK9700033 - Coarse filter

1 x ZUK9700032 - Anti-scale filter

1 x ZUK9700031 - Fine filter.



Ancillary Items



BR 80 insulated ice cart

80kg capacity insulated ice cart, moulded from food safe polymer for maximum hygiene. With removeable lid.



7 day timer

Allows programming of the machine to make ice at specific times of the day or night.


GRP plantroom: A standalone GRP plantroom to protect the ice machine from the elements and thieves when the machine must be mounted outdoors. Arrives fully assembled, needs only a suitable base to bolt it down to. Only available with remote condener option above.
